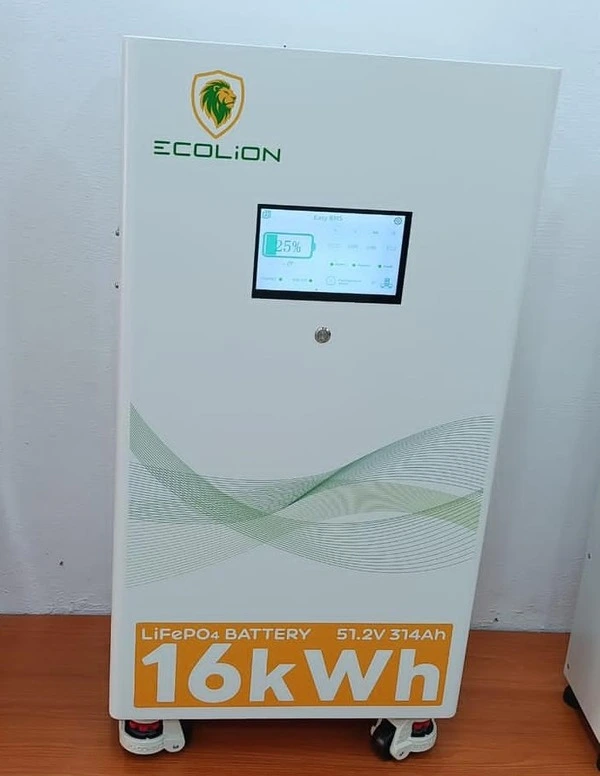

Ecolion 16kWh Solar Lithium Battery

Ecolion 16kWh Solar Lithium Battery

The Ecolion 16kWh is their big-capacity LiFePO₄ battery for homes, offices, and off-grid setups that need to run heavy loads overnight without grid.

Features & Benefits

High Capacity, One Unit: 16kWh replaces 8 × 200Ah 12V tubular batteries. Saves space + wiring mess.
Ultra-Long Lifespan: 6000+ cycles vs 1200 for tubular. If you cycle daily, that’s 16+ years vs 3 years.
Deep Discharge: Use 80-100% daily without damage. Lead-acid dies fast below 50% DoD.
Fast Charging: 100A charge = 0 to 100% in ∼3 hours with enough solar. Lead-acid needs 8-10hrs.
Safety First: LiFePO₄ doesn’t catch fire or explode like NMC/NCA lithium. Excellent thermal stability.
Smart Monitoring: BMS talks to your inverter. You see real SOC, voltage, temp, cell balance on inverter screen/app.
Zero Maintenance: No watering, no acid fumes, no corrosion on terminals. Set and forget.
Compact + Scalable: Wall-mount saves floor space. Add more units later if load increases.

What 16kWh Can Power – Realistic Night Backup
With ∼13kWh usable @ 80% DoD, 6pm-6am = 12hrs → ∼1.08kW

average load:
3-Bedroom Flat: 2 AC 1HP 800W×2 = 1.6kW + fridge 150W + TV 120W + lights/fans 200W = 2.07kW → ∼6.5 hours
AC + Fridge + Freezer: 1.5HP AC 1.1kW + fridge + freezer = 1.5kW → ∼8.5 hours
Office/Shop: 5 PCs 200W×5 + AC 1HP + lights = 2.1kW → ∼6 hours
Light load only: Lights, TV, fridge, fans, router = 400W → ∼32 hours

Installation Notes
48V System Only: Must pair with 48V inverter/charge controller. Don’t mix with 12V/24V.
Cable Size: 16kWh @48V can pull 300A+. Use 70mm² or 95mm² DC cable + proper fuses.
Ventilation: Keep room 15°C-35°C. Heat kills lithium lifespan.
First Charge: Do full charge to 58.4V before use so BMS can balance cells.
Parallel Setup: If adding 2nd Ecolion 16kWh, connect comms cable + parallel cables as per manual.

Weight ~100kg | ~400kg+ |

Charge Time | 3-4 hours | 8-10 hours |

Bottom line: If you’re tired of changing tubular batteries every 2-3 years and want AC + fridge to run all night on solar, Ecolion 16kWh 48V is the sweet spot. One battery, less wiring, 15+ years peace of mind
