2.5kw smksolar hybrid inverter

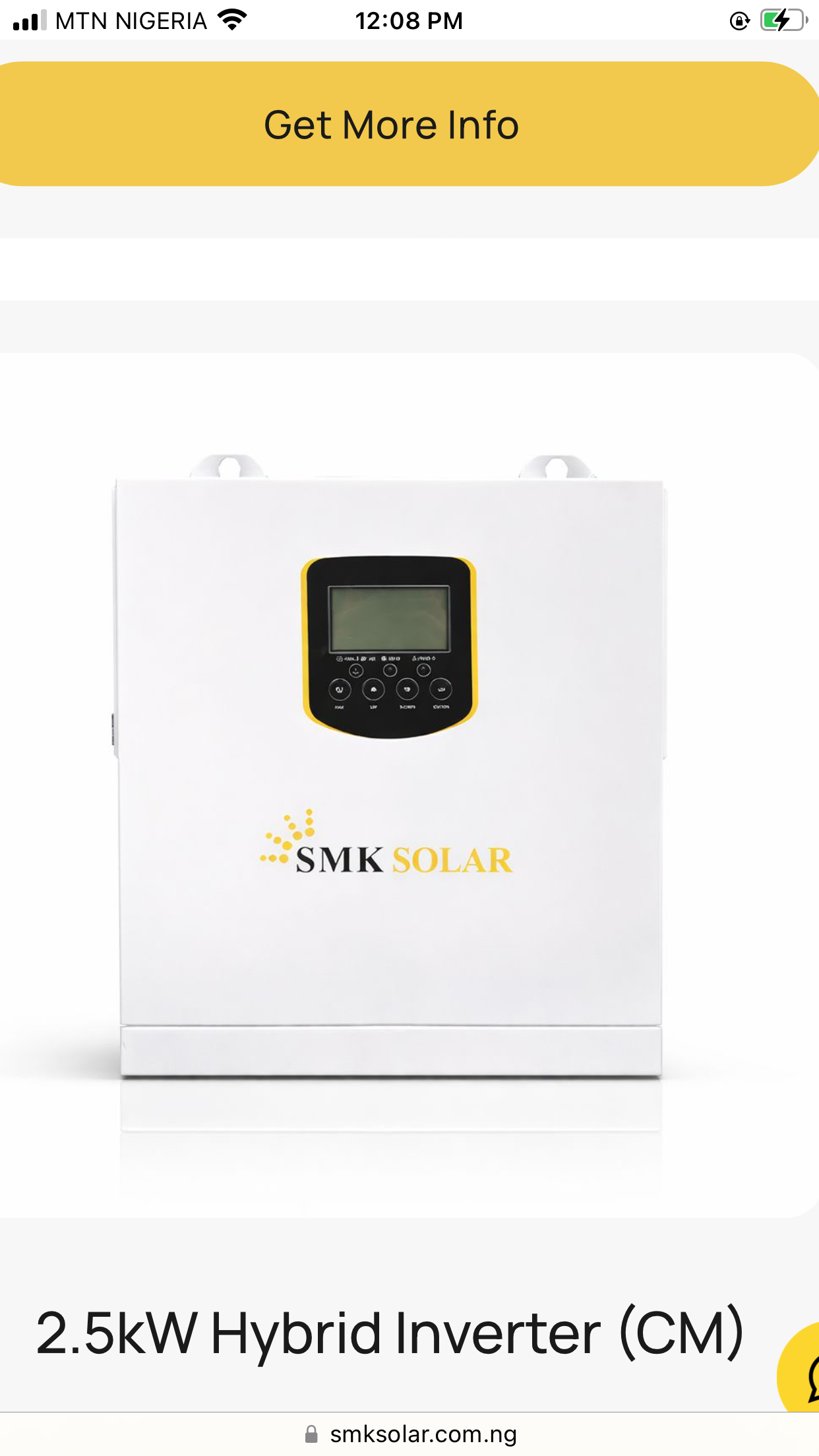

*SMKSolar 2.5kW Hybrid Inverter

SMKSolar 2.5kW is the “big brother” of the 1.5kVA. It’s a 24V hybrid MPPT inverter for 2-3 bedroom flats, offices, and shops that need to run fridge + AC + basic loads.

*1. Key Specifications*

**Parameter** **Typical Value**
**Model** SMKSolar 2.5kW Hybrid MPPT Inverter
**Rated Power** 2.5kW / 2500VA continuous. Peak/Surge ~5000W for 5s
**Battery Voltage** 24VDC system. Uses 2×12V batteries in series
**Output Voltage** 230VAC ±5%, 50Hz/60Hz auto
**Output Waveform** Pure Sine Wave
**Solar Charger** Built-in MPPT, usually 80A
**Max PV Input** 2000W – 3000W @ 24V. Max Voc ~145VDC
**MPPT Voltage Range** 60V – 115VDC for 24V model
**AC Charger** 30A – 60A from NEPA/generator
**Transfer Time** <10ms. Zero downtime for electronics
**Battery Types** Lead-acid, Tubular, Gel, LiFePO₄ Lithium. Selectable in menu
**LCD Display** PV input, battery SOC %, load watts, AC input, faults, temp
**Protection** Overload, short circuit, over/under voltage, over-temp, battery reverse
**Efficiency** 92% – 94% peak

**Weight** ~11kg – 14kg

*2. Features & Benefits*
1. *Pure Sine Wave*: Clean power for fridge compressor, AC, washing machine, laptop. No humming.
2. *24V System*: Higher voltage = lower current = less cable heat vs 12V. 2.5kW @24V = 104A vs 208A @12V.
3. *High MPPT 80A*: Can take 2kW-3kW solar. MPPT efficiency ∼98%. Good for Abuja sun.
4. *3 Working Modes*: SBU Solar-Battery-Utility, SUB Solar-Utility-Battery, UTI Utility-first. Set based on NEPA cost.
5. *Parallel Ready*: Some SMK 2.5kW models can parallel 6 units = 15kW for bigger loads.
6. *Lithium Ready*: Pre-set charging for 24V LiFePO₄ like Ecolion 25.6V 300Ah 7.68kWh.
7. *LCD + Settings*: Adjust charge current, cut-off voltage, output voltage without laptop/PC.
8. *Fast Transfer <10ms*: Fridge, TV, CCTV won’t reset when NEPA comes/goes.

*3. What 2.5kW Can Power*
Keep continuous load under 2kW for safety. Surge 5kW handles motor startup.

*Can run together:*
– 1HP AC 800W + fridge 150W + freezer 200W + TV 120W + 6 bulbs 60W + fans 120W = ∼1.45kW
– Washing machine 500W + fridge + TV + lights = ∼900W
– 0.5HP water pump 400W + 1HP AC 800W + other loads = ∼1.5kW
– Office: 4 PCs 800W + AC 1HP + printer = ∼1.8kW

*Cannot run:* 2HP AC, electric cooker 3kW, electric water heater 3kW. Will overload.

*4. Solar + Battery Sizing for Abuja*
To get 24/7 backup:
1. *Battery*: 24V 200Ah tubular = 4.8kWh, or 24V 100Ah LiFePO₄ = 2.56kWh. Better: 24V 300Ah LiFePO₄ = 7.68kWh Ecolion. Gives real night backup.
2. *Solar Panels*: 6-8 × 300W = 1.8kW – 2.4kW total. MPPT 80A can handle 2400W @24V. Gives 9-12kWh/day.
3. *Example Setup*: 2.5kW SMK + 24V 300Ah lithium + 8×300W panels → Run AC 1HP 8hrs + fridge 24hrs on solar.

*5. Installation Tips*
1. *Cable size*: 2.5kW @24V = 104A. Use 50mm² or 70mm² battery cable + 125A DC breaker.
2. *Panel wiring*: Wire panels 2S4P or 3S3P to hit 80-110V for MPPT. Don’t exceed 145Voc.
3. *Battery balance*: For tubular, use battery balancer. For lithium, BMS handles it.
4. *Ventilation*: Mount in cool, dry place. Inverter derates power above 40°C.

*6. Price + Best Use – Nigeria*
SMKSolar 2.5kW 24V hybrid MPPT in Abuja/Lagos: *₦280k – ₦380k* depending on MPPT size and warranty.
*Best for*: 2-3 bedroom flat, mini office, restaurant, barbing salon. Anyone who needs AC + fridge overnight.

*Bottom line*: SMKSolar 2.5kW hybrid is the sweet spot for Nigerian homes. 24V means less cable loss, 2.5kW handles AC + fridge, and MPPT 80A takes enough solar to charge big batteries. Pair with 24V 300Ah lithium + 2kW solar and you’ll run off-grid most days.
